SIGNAL CONDITIONERS Isolated Signal Conditioner MS5000 Series【12】

Ultra-slim Isolated Signal Conditioners

Series model lists

Advanced Search Compare the Products checked

  • Overview
  • Download
  • Price
  • Standard Lead Time
  • Warranty Period
  • Standards & Approvals / RoHS
  • Power Supply
  • Details
  • Basic Information
  • Compare
  • 左スクロール
  • 左スクロール
loading
The MS5000 Series features 6.2 mm ultra-slim design, high reliability and durability as in the MS2900 series, and a 7-year warranty, the longest in the industry. The series employs multi-turn trimmers and transformer isolation, which are the primary features of MTT products.
  • 6.2 mm wide
  • European style screw terminal block
  • Isolated single output (3-way isolation)
  • A total of 5 models

*1 Products are warranted for years from the date of shipment.

Warranty Period *1 7Years
Standard Lead Time 5Days
Power Supply Rating: 24V DC
Connection DIN rail mounting

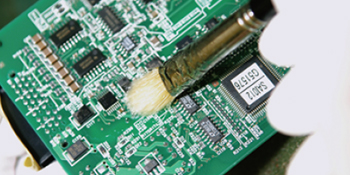

Conformal coating

Coating is not only resistant to accidental exposure to corrosive gas or oily smoke, but has a number of benefits contributing to long-term reliability. It avoids direct exposure to air to protect printed circuit boards and electronic parts against humidity, moisture, dust, chemicals, and thermal stress, thereby preventing corrosion, migration and any other damages. (HumiSeal® 1A27NSLU is used as a conformal coating. ) * This will be optional at extra cost, starting with orders placed on November 1, 2022.

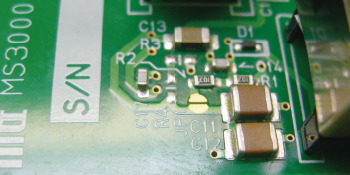

Ceramic capacitors employed

This series employs ceramic capacitors to achieve low current draw with extremely low heat generation, thus leading to long service life. (The ceramic capacitors are not affected by prolonged use, as opposed to aluminum electrolytic capacitors.)

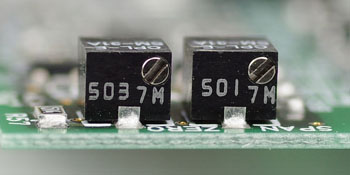

Multi-turn trimmers employed

This series employs multi-turn trimmers for zero and span adjustments. Our conventional series have used 3-turn or 4-turn trimmers, but the multi-turn trimmers employed facilitate fine adjustment and provide improved resistance to vibration. The new trimmers also have static protection.

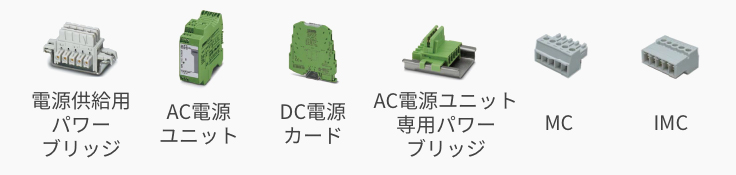

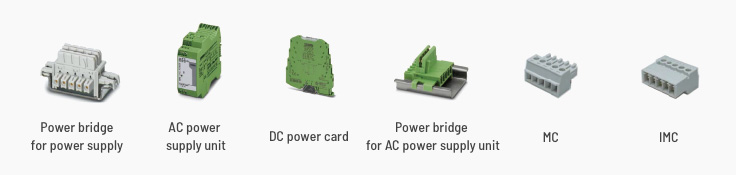

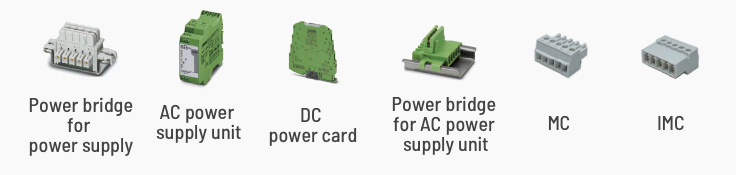

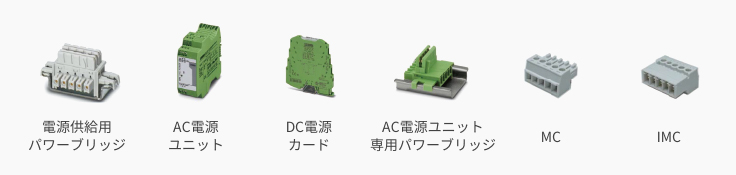

Efficient power connection for multiple use

Using a power supply unit, power bridge, and connector enables concentrated power supply, thereby making the wiring work more efficient.
